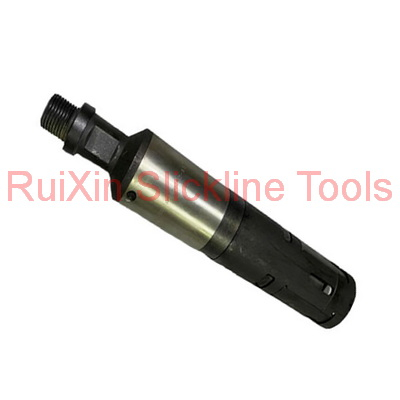

Herramienta de tracción tipo RB

RB Type pulling tools is one of Type R pulling tool, which is an outer pulling tool, which can grasp the shoulder of the outer fishing neck with special fishing claw and move upward to release the claw. The RB Type pulling tools is applied for wireline / slick line operation in oilfield.
Estado de Disponibilidad:
Preguntar

  • 2 pulgadas-4 pulgadas

  • Ruixin

  • Herramienta de tracción tipo RB

  • Aleación de acero y aleación de níquel

  • chinabaoji

  • Operación con cable y operación con línea de acero

  • Estándar

RB type Pulling Tool Manufacturer - Ruixin

RB Type pulling tools is one of Type R pulling tool, which is an outer pulling tool, which can grasp the shoulder of the outer fishing neck with special fishing claw and move upward to release the claw. The RB Type pulling tools is applied for wireline / slick line operation in oilfield.

RB type Pulling Tool General Technical Parameters

Size

Actual OD

Fishing neck

Connection

2＂

1.77＂

1.375＂

15/16-10UN

2.5＂

2.18＂

1.375＂

15/16-10UN

3＂

2.74＂

2.313＂

1-1/16-10UN

4＂

3.718＂

2.313＂

1-1/16-10UN

Note.  More customized parts are available upon request.

RB type Pulling Tool Structural features

RB type Pulling Tool is a Shear Up Pulling Tool for External Fishing Neck and designed to run and retrieve sub-surface equipment with external fishing neck. The tools can be released by jarring up. Shear Up Pulling Tools: shear against the force on Dogs.After pulling out the tool, use a releasing tool to stick in the releasing position, unclench the fishing claw to splay, and then the tool fished is released.

RB type Pulling Tool Notes

1. Before lowering the tool, inspect whether the connection threads of the tool are loose.

2. Maintain it in time after use.
