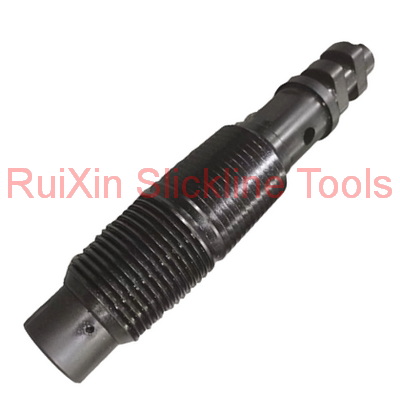

The Tubing Broach is used to remove burrs in the tubing left after perforating and broaching through the restrictions in the tubing. Tubing Broach is also used to remove scale, rust etc, from tubing I.D.
OD | Fishing neck | Connection |
1.5＂ | 1.375＂ | 15/16-10UN |
2＂ | 1.375＂ | 15/16-10UN |
2.5＂ | 1.75＂ | 1-1/16-10UN |
3＂ | 1.75＂ | 1-1/16-10UN |
4＂ | 2.313＂ | 1-9/16-10UN |
5＂ | 2.313＂ | 1-9/16-10UN |
Note：More customized parts are available upon request.
The Tubing Broach is used for re-sizing inside the diameters of downhole completion equipment. The most commonly used broaching tools are made from one solid piece of material. A series of staggered cutting edges starts at a small diameter and incrementally increases until reaching its maximum diameter.
The tubing broach slickline is only used to scrape off a certain amount of obstructions. When the obstruction in the oil pipe is too thick or the oil pipe is deformed seriously, other tools shall be considered.
The Tubing Broach is used to remove burrs in the tubing left after perforating and broaching through the restrictions in the tubing. Tubing Broach is also used to remove scale, rust etc, from tubing I.D.
OD | Fishing neck | Connection |
1.5＂ | 1.375＂ | 15/16-10UN |
2＂ | 1.375＂ | 15/16-10UN |
2.5＂ | 1.75＂ | 1-1/16-10UN |
3＂ | 1.75＂ | 1-1/16-10UN |
4＂ | 2.313＂ | 1-9/16-10UN |
5＂ | 2.313＂ | 1-9/16-10UN |
Note：More customized parts are available upon request.
The Tubing Broach is used for re-sizing inside the diameters of downhole completion equipment. The most commonly used broaching tools are made from one solid piece of material. A series of staggered cutting edges starts at a small diameter and incrementally increases until reaching its maximum diameter.
The tubing broach slickline is only used to scrape off a certain amount of obstructions. When the obstruction in the oil pipe is too thick or the oil pipe is deformed seriously, other tools shall be considered.
